CDPC Snap-in Aluminum Electrolytic Capacitor for P.F.C Circuits

Component Overview

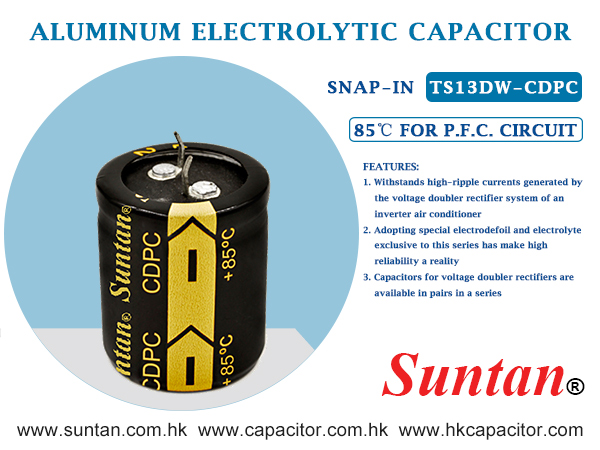

The CDPC series is a snap-in type aluminum electrolytic capacitor designed for Power Factor Correction (P.F.C.) circuits.
It is developed for applications where high ripple current capability is required, particularly in voltage doubler rectifier systems used in inverter air conditioners.

Structural and Design Features

• Snap-in terminal configuration for secure PCB mounting
• Designed for P.F.C circuit applications
• Available in paired configuration for voltage doubler rectifiers

Performance Characteristics

• Withstands high ripple currents generated by voltage doubler rectifier systems
• Special electrode foil and electrolyte formulation dedicated to this series
• Enhanced reliability under inverter operating conditions

Applications

• Power Factor Correction circuits
• Voltage doubler rectifier systems
• Inverter air conditioners
• High ripple current power electronics applications

Design Considerations

• Verify ripple current rating according to P.F.C circuit requirements
• Confirm thermal management in high-current applications
• Use paired configuration when applied in voltage doubler topology
• Ensure mechanical compatibility with snap-in PCB layout
