Axial Lead Aluminum Electrolytic Capacitors – TS13AE / TS13AD / TS13AH Series

Overview

Suntan axial lead aluminum electrolytic capacitors are designed for applications requiring long operational life, resistance to vibration, and stable ripple current performance. The axial configuration supports through-hole mounting in power and industrial assemblies.

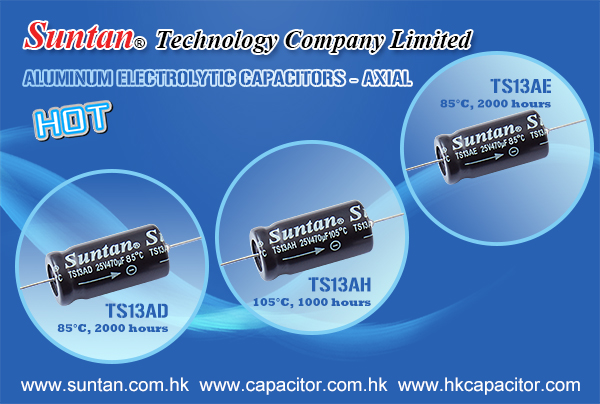

Series List

• TS13AE
  – 85°C
  – Low voltage
  – 2000 hours
  – 2 Rubber Type
• TS13AD
  – Low leakage
  – 2000 hours
  – 2 Rubber Type
• TS13AH
  – 105°C
  – Low leakage
  – 1000 hours
  – 2 Rubber Type

Electrical Characteristics

• Capacitor type: Aluminum Electrolytic
• Lead configuration: Axial lead
• Temperature ratings: 85°C / 105°C (depending on series)
• Lifetime ratings: 1000 to 2000 hours (as specified per series)
• Low leakage options available

Applications

• Automotive power systems
• Industrial LED lighting
• Telecom infrastructure equipment

Design Considerations

• Verify operating temperature against series rating.
• Confirm ripple current requirement within specified lifetime conditions.
• Evaluate leakage current performance where circuit sensitivity is critical.
• Ensure axial lead format matches PCB layout and mechanical constraints.

Technical Documentation

Refer to individual series datasheets for detailed electrical specifications, dimensional drawings, and lifetime performance data.
