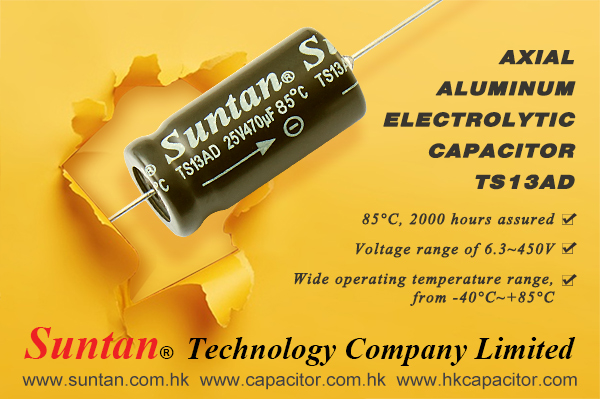

TS13AD Axial Aluminum Electrolytic Capacitor for General-Purpose Filtering Applications

Component Overview

The TS13AD series is an axial leaded aluminum electrolytic capacitor designed for through-hole PCB assembly.
It features low leakage current and is suitable for DC filtering and energy storage in general electronic circuits.

Electrical Characteristics

• Rated voltage range: 6.3V to 450V
• Endurance: 2000 hours at 85°C
• Operating temperature range: -40°C to +85°C
• Low leakage current

Mechanical Structure

• Axial lead configuration
• Aluminum electrolytic construction
• Rubber seal design

Performance Features

• Stable operation within specified temperature range
• Low leakage suitable for DC filtering circuits
• Through-hole mounting for conventional PCB processes

Applications

• Power supply filtering
• Industrial electronic equipment
• Consumer electronics
• General DC smoothing circuits

Design Considerations

• Voltage rating should exceed circuit operating voltage
• Observe polarity during installation
• Verify thermal conditions according to endurance rating
• Confirm PCB lead spacing compatibility

Datasheet

For detailed specifications, refer to the official datasheet:
TS13AD Datasheet
