High Voltage Ceramic Capacitor for Pulse and Power Supply – TS16 Series 1kV to 15kV

TL;DR: The TS16 high voltage ceramic capacitor series supports 1kV to 15kV DC with stable capacitance, low loss, and reliable performance for pulse circuits, HV power supplies, and precision measurement systems.

What Is a High Voltage Ceramic Capacitor?

A high voltage ceramic capacitor is designed to withstand elevated electric fields while maintaining stable capacitance and low dielectric loss. These capacitors are widely used in high voltage power supplies, pulse generators, and measurement equipment requiring insulation reliability and fast response.

TS16 Series Overview

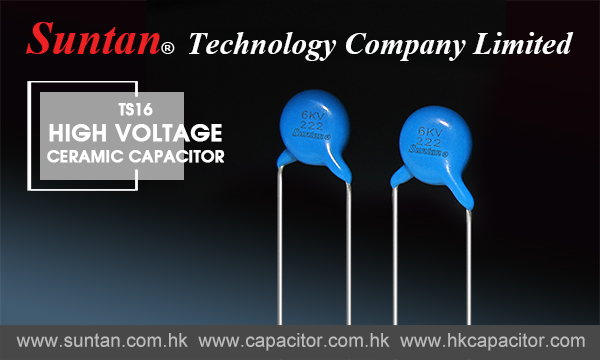

The TS16 high voltage ceramic capacitor offers a voltage range from 1kV to 15kV DC and capacitance values from 100pF to 10,000pF. Its robust ceramic dielectric ensures long-term stability under high voltage stress and repetitive pulse conditions.

Key Electrical Characteristics

• Rated voltage range: 1kV to 15kV DC
• Capacitance range: 100pF to 10,000pF
• Low dielectric loss for high voltage operation
• High insulation resistance and reliability
• Stable performance in pulse and impulse circuits

Performance Advantages in High Voltage Designs

In high voltage power supplies and pulse applications, dielectric strength and insulation reliability are critical. The TS16 series minimizes capacitance drift and energy loss, ensuring consistent performance in repetitive charge-discharge and transient conditions.

Typical Applications

• High voltage power supplies and converters
• Pulse and impulse generator circuits
• Telecommunications high voltage modules
• Precision measurement and test equipment
• Industrial control systems operating at elevated voltages

Selection Considerations for High Voltage Circuits

When selecting a high voltage ceramic capacitor for pulse or power supply designs, engineers should evaluate voltage derating, insulation resistance, capacitance tolerance, and pulse load conditions to ensure long-term reliability.

Download TS16 Datasheet

Access detailed electrical specifications and application guidance:



TS16 High Voltage Ceramic Capacitor Datasheet

Product Demonstration Video

Watch the TS16 high voltage ceramic capacitor in practical applications:


TS16 High Voltage Ceramic Capacitor Overview

Request Samples and Engineering Support

Looking for a 1kV to 15kV ceramic capacitor for high voltage pulse circuits? Contact our team for technical consultation, samples, and RFQ support.
