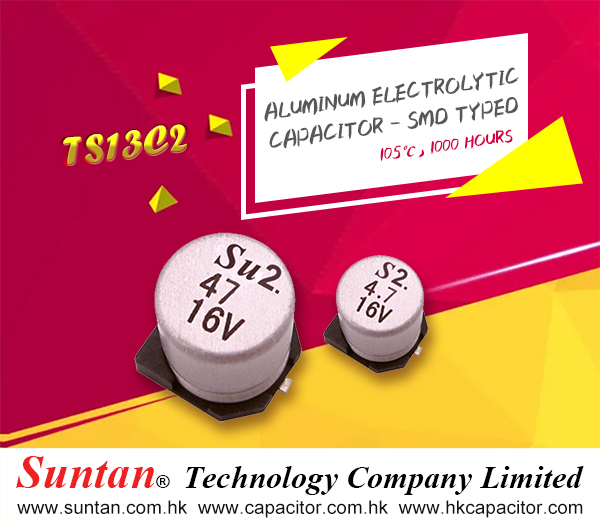

TS13C2 SMD Aluminum Electrolytic Capacitor – 105 °C Standard Load Life Series

Component Overview

The TS13C2 series is a surface mount aluminum electrolytic capacitor designed for general-purpose filtering and decoupling applications. The series operates at elevated temperature with a specified load life suitable for standard power supply designs.

Electrical and Reliability Characteristics

• Maximum operating temperature: +105 °C
• Load life: 1000 hours at rated temperature
• Solvent-resistant construction (within 2 minutes exposure)

Assembly Compatibility

• Surface mount configuration
• Compatible with automated reflow soldering processes

Applications

• Switching power supply filtering
• DC output smoothing
• Industrial control electronics
• General-purpose decoupling

Design Considerations

• Verify ripple current capability at operating temperature
• Apply voltage and temperature derating for lifetime optimization
• Confirm PCB land pattern for SMD aluminum electrolytic packages
• Evaluate thermal conditions in compact layouts

For detailed electrical parameters and dimensional data, refer to the TS13C2 datasheet.
