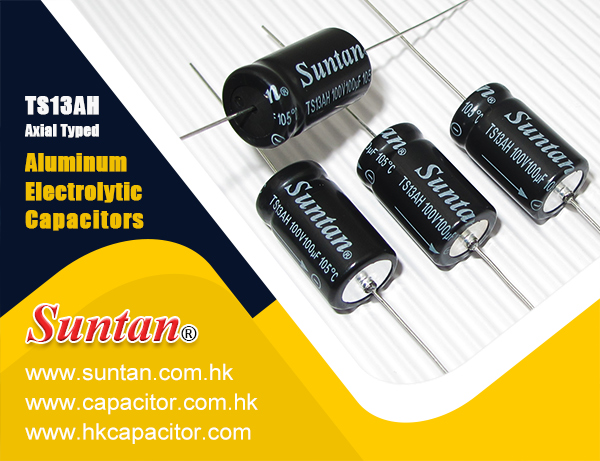

TS13AH Axial Aluminum Electrolytic Capacitor for General Electronic Circuits

Component Overview

The TS13AH series is an axial leaded aluminum electrolytic capacitor designed for through-hole mounting.
It is characterized by low leakage current and a wide operating temperature range, making it suitable for general-purpose electronic applications requiring stable DC filtering and energy storage.

Electrical Characteristics

• Rated voltage range: 6.3V to 450V
• Low leakage current
• Endurance: 1000 hours at 105°C
• Operating temperature range: -40°C to +105°C

Mechanical Structure

• Axial lead configuration
• Aluminum electrolytic construction
• Rubber seal design

Performance Features

• Stable performance across wide temperature conditions
• Low leakage suitable for DC filtering circuits
• Through-hole mounting for conventional PCB assembly

Applications

• Power supply filtering
• General electronic circuits
• Industrial control equipment
• Consumer electronics

Design Considerations

• Select voltage rating with adequate margin over circuit operating voltage
• Verify ripple and thermal conditions for long-term reliability
• Axial lead spacing should match PCB layout requirements
• Observe polarity during installation

Datasheet

For detailed specifications, refer to the official datasheet:
TS13AH Datasheet
