TS07A Mini Box Metallized Polypropylene Film Capacitors – High Reliability and Self-Healing Design

Overview

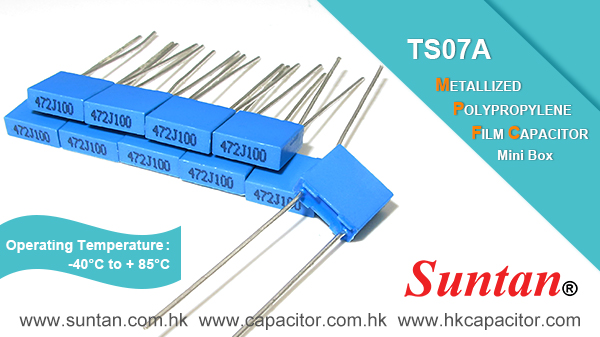

The TS07A series is a mini box metallized polypropylene film capacitor designed for high-current stress applications.
The capacitors provide self-healing properties, low loss, high dv/dt capability, and stable performance in demanding electronic circuits.

Electrical and Mechanical Characteristics

• Operating temperature: -40°C to +85°C
• Rated voltages (DC): 100?V, 250?V, 400?V, 630?V, 1000?V
• Capacitance range: 0.001??F – 1??F
• Capacitance tolerance: ±5%
• Insulation resistance: C ? 0.33??F, IR ? 50,000?MΩ; C > 0.33??F, IR ? 15,000?MΩ
• Dissipation factor: ? 0.1% at 1?kHz, 20°C
• Dielectric strength: 160% of rated voltage for 60?s
• Flame-retardant plastic case with epoxy resin encapsulation

Applications

• AC and DC high-current filtering
• Power supply decoupling
• Industrial control electronics
• Energy conversion and distribution circuits

Design Considerations

• Select rated voltage and capacitance according to application requirements
• Ensure insulation resistance meets circuit reliability requirements
• Confirm operating temperature compatibility with the system environment
• Consider PCB footprint for mini box package and high-current capability

Conclusion

The TS07A mini box metallized polypropylene film capacitors combine high reliability, self-healing capability, and low loss performance, suitable for high-current and industrial applications.
