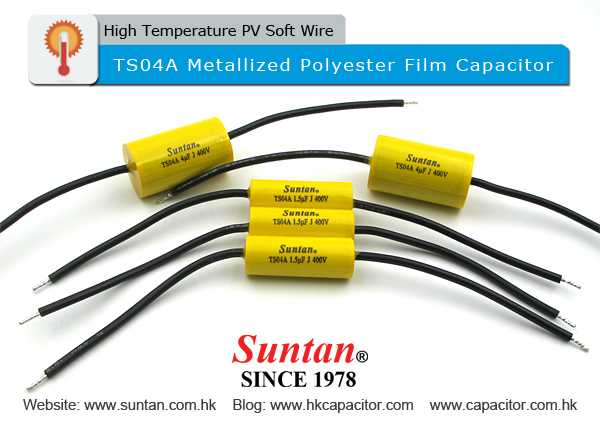

TS04A Metallized Polyester Film Capacitor – High Temperature PV Soft Wire Version
Product Overview
The TS04A metallized polyester film capacitor is traditionally supplied with two solid pin leads. To address application requirements involving flexible installation and elevated operating temperature conditions, Suntan introduces a TS04A variant equipped with high temperature PV soft wire leads.
Structural Characteristics
- Dielectric: Metallized Polyester Film
- Lead Type: High temperature PV soft wire
- Construction: Non-inductive design
- Compact volume
- Wide capacitance range
- Self-healing capability
- High reliability
- High temperature resistance
Application Scope
The TS04A PV soft wire version is suitable for DC and low pulse circuits. Typical application environments include:
- Electronic equipment
- Communication systems
- Audio equipment
Engineering Considerations
- Confirm continuous operating temperature requirements.
- Evaluate mechanical flexibility requirements in assembly.
- Verify capacitance value and tolerance based on circuit design.
- Review ripple and pulse conditions for low pulse circuit integration.
Technical Documentation
For complete specifications, refer to the official TS04A datasheet:
