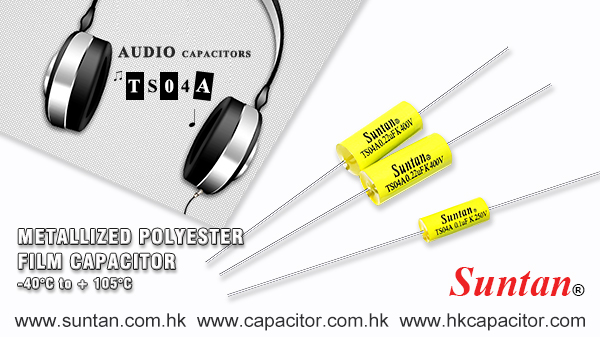

TS04A Axial Metallized Polyester Film Capacitor – Electrical Characteristics and Applications

Component Construction

The TS04A series is an axial metallized polyester film capacitor using metallized polyester film as both dielectric and electrode. The element is encapsulated with flame-retardant plastic and epoxy resin to provide mechanical protection and environmental resistance.

Electrical Characteristics

• Operating temperature range: -40 °C to +105 °C
• Capacitance range: 0.033 ?F to 68 ?F
• Capacitance tolerance: J (±5%), K (±10%)
• Rated DC voltage: 100 V, 250 V, 400 V, 630 V
• Withstand voltage: 1.6UR for 2 seconds (1.5UR for 5 seconds)

Functional Properties

• High reliability
• High temperature resistance
• Compact size with relatively high capacitance
• Self-healing dielectric structure

Applications

• Instrumentation circuits
• DC and AC coupling in household equipment
• Audio frequency divider networks

Design Considerations

• Verify rated voltage with appropriate derating for DC operation
• Confirm axial lead spacing for mechanical mounting
• Evaluate tolerance class for timing and filtering accuracy
• Consider self-healing behavior under transient overvoltage conditions

For detailed electrical parameters and dimensional data, refer to the TS04A datasheet.
