TS08S Class X2 Metallized Polypropylene Film Capacitors – Sample Kit for Engineering Evaluation

Overview

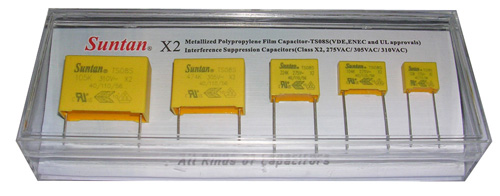

A TS08S sample kit has been prepared to support engineering evaluation and distributor technical presentation.
The kit provides physical reference for component dimensions, marking, and voltage class identification during design-in and qualification processes.

Component Type

TS08S is a Class X2 metallized polypropylene film capacitor intended for across-the-line interference suppression in AC mains circuits.

Certification and Compliance

• cUL approval
• UL approval
• ENEC approval
• VDE approval
• Rated voltages: 275VAC, 305VAC, 310VAC
• RoHS 2.0 compliant
• REACH 138 SVHC compliant

Applications

• EMI suppression in AC input stages
• Power supplies and adapters
• Household appliances
• Industrial electronic equipment

Design Considerations

• Verify voltage class according to mains operating conditions
• Confirm safety certification for regional compliance
• Evaluate component size and lead spacing for PCB layout
• Use physical samples for incoming inspection criteria and qualification testing

Engineering Evaluation Support

The sample kit enables direct comparison of voltage classes and marking information, supporting component selection and documentation review during safety approval processes.

Conclusion

The TS08S sample kit provides a practical reference for Class X2 capacitor selection and compliance verification in EMI suppression design.

For datasheet access, please refer to:

http://www.suntan.com.hk/pdf/Plastic-Film-Capacitors/TS08S.pdf

For sample requests or technical inquiries, please contact:
Sales: sales@capacitors.com.hk
General inquiries: info@suntan.com.hk
