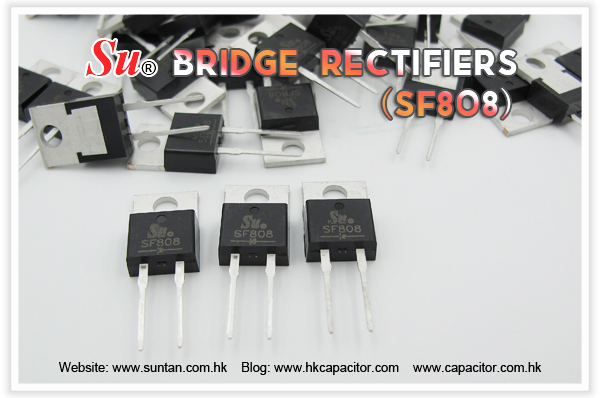

SF808 Bridge Rectifier – 8A Super Fast Recovery for Efficient Power Conversion

Product Overview

SF808 is a bridge rectifier designed for power conversion circuits requiring fast switching behavior and stable rectification performance.
The device integrates four rectifying elements in a single package, enabling AC to DC conversion in compact electronic assemblies.

Electrical Characteristics

• Forward Current: 8.0 A
• Maximum Recurrent Peak Reverse Voltage: 600 V
• Maximum DC Blocking Voltage: 600 V
• Operating and Storage Temperature Range: -55 ℃ to +105 ℃
• Low forward voltage drop
• Low reverse leakage current
• Super fast switching time
• Plastic material with UL flammability classification 94V-0

Performance Considerations

The super fast switching characteristic supports higher efficiency in power supply designs by reducing switching loss.
Low forward voltage drop contributes to improved power conversion efficiency and reduced heat generation.
Low reverse leakage current enhances stability under reverse bias conditions.

The 600 V voltage rating allows use in medium-voltage rectification stages, while the 8 A forward current capability supports moderate power applications.

Applications

• Switching power supplies
• Adapters and chargers
• Industrial control equipment
• General rectification circuits

Design Considerations

• Ensure sufficient thermal management according to 8 A forward current rating.
• Verify reverse voltage margin relative to maximum input AC voltage.
• Consider switching frequency when evaluating fast recovery behavior.
• Confirm operating temperature range compliance with end-product requirements.
