Schottky Diodes in Fast Switching and Low Forward Voltage Applications

Overview

Schottky diodes are two-terminal semiconductor devices used for rectification and current steering.
Compared with conventional PN junction diodes, they exhibit distinct electrical behavior that supports high frequency and low loss power designs.

Key Electrical Characteristics

• Small reverse recovery time for fast switching circuits
• Low forward voltage drop for improved efficiency
• Unidirectional current conduction for rectification

Performance Advantages

The short reverse recovery characteristic allows Schottky diodes to operate effectively in high frequency switching environments such as SMPS and communication circuits.
Low forward voltage reduces conduction loss, which is beneficial in high current and low voltage power stages.

Typical Applications

• Switching mode power supplies
• Communication equipment
• RF mixer and detector circuits
• General DC rectification and wave shaping

Common Package and Current Options

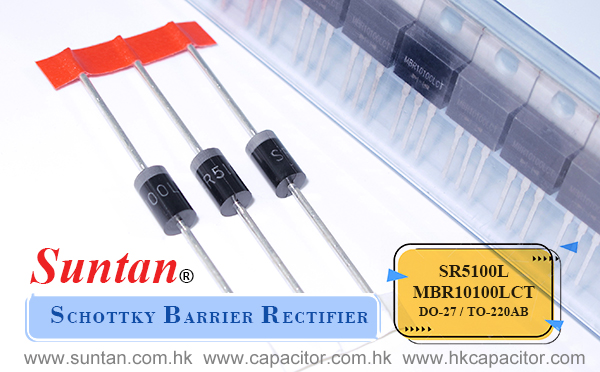

• DO-27: SR320 through SR3100
• DO-27: SR520 through SR5100
• SMA-J: SS12 through SS110 (1.0 A)
• SMC: SS52 through SS510 (5.0 A)

Design Considerations

• Select current rating according to load conditions
• Evaluate forward voltage impact on thermal performance
• Consider switching frequency when comparing recovery behavior
• Match package type with PCB thermal and mechanical requirements
