TS22 Y Safety Capacitor for Line-to-Ground EMI Suppression

Component Overview

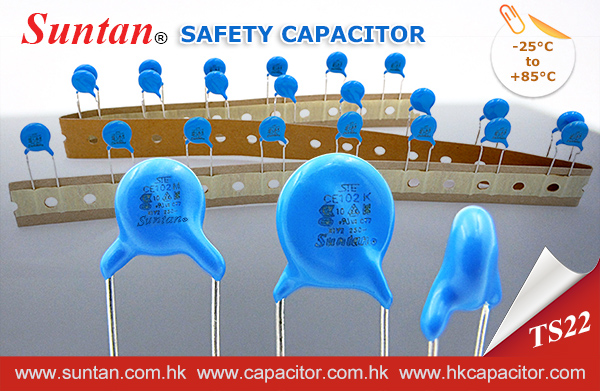

The TS22 series is a ceramic safety standard recognized capacitor designed for line-to-ground (Y-class) applications.
It is intended for use in AC mains circuits where safety compliance and insulation reliability are required.

Electrical Characteristics

• Rated AC voltage: 125V, 250V, 400V
• Capacitance range: 10pF to 10000pF
• Operating temperature range: -25℃ to +85℃

Performance Features

• Designed for safety-compliant applications
• Suitable for EMI suppression between line and ground
• Stable capacitance within specified temperature range

Applications

• AC input EMI filtering
• Line-to-ground noise suppression
• Power supplies
• Household appliances and industrial equipment

Design Considerations

• Select rated voltage according to AC mains specification
• Ensure compliance with safety spacing and insulation standards
• Choose capacitance value based on common-mode noise attenuation requirements
• Verify operating temperature remains within specified limits

Datasheet

For detailed specifications, refer to the official datasheet:
TS22 Safety Capacitor Datasheet
