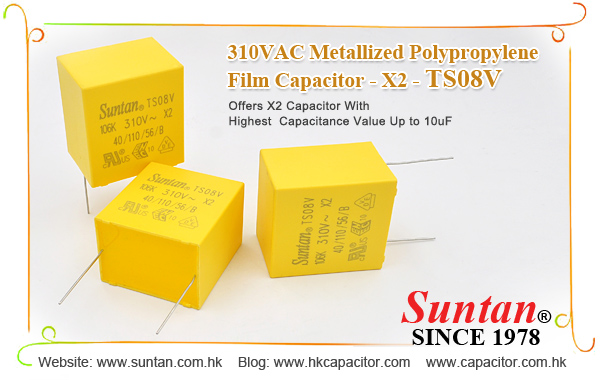

TS08V X2 Film Capacitor – EMI Suppression Across-the-Line Solution

Product Overview

TS08V is a fixed film capacitor designed for electromagnetic interference suppression and connection to the supply mains.
It is also referred to as an RFI-suppression capacitor and is classified as X2 safety capacitor.

Electrical Specifications

Rated Voltage

• 250VAC
• 275VAC
• 300VAC
• 305VAC
• 310VAC

Rated Capacitance Range

• 1nF, 1.2nF, 1.5nF, 1.8nF
• 2.2nF, 2.7nF, 3.3nF, 3.9nF, 4.7nF, 5.6nF
• 6.8nF, 8.2nF, 10nF, 12nF, 15nF, 18nF
• 22nF, 27nF, 33nF, 39nF, 47nF, 56nF, 68nF
• 82nF, 100nF, 120nF, 150nF, 180nF, 220nF
• 270nF, 330nF, 390nF, 470nF, 560nF, 680nF, 820nF
• 1000nF, 1200nF, 1500nF, 1800nF, 2200nF, 2700nF, 3300nF
• 3900nF, 4700nF, 5600nF, 6800nF, 8200nF, 10000nF

Safety Classification

• Capacitor Class: X2
• Climatic Category: 40/110/56
• Passive Flammability Category: B
• Certification Marks: ENEC, VDE, UL, cUL

Applications

• Across-the-line EMI suppression
• AC input filtering
• Power supply interference control
• Line-to-line noise suppression

Design Considerations

• Select voltage rating according to mains supply margin.
• Verify capacitance value based on EMI filtering requirement.
• Ensure compliance with safety certification standards.
• Consider climatic category relative to operating environment.

Reference Document

Datasheet available at:

http://www.suntan.com.hk/pdf/Plastic-Film-Capacitors/TS08V.pdf
