M7 Rectifier Diode (SMD 4007) – 1A Surface Mount Rectification Solution

Product Overview

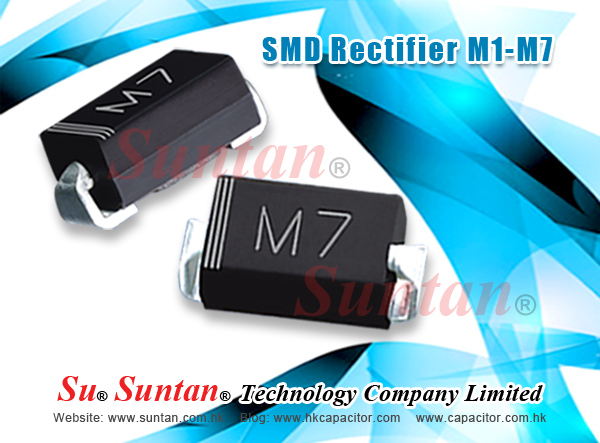

M7 is a surface-mount rectifier diode corresponding to the 1N4007 device family in SMD format. The component is designed for general-purpose rectification in DC power circuits and supports automated assembly processes.

Electrical and Package Information

• Reverse Voltage Range: 50V – 1kV
• Average Forward Current: 1.0A
• Package Type: DO-214AC (SMD)

Applications

• AC to DC rectification circuits
• Power supply input and output stages
• General-purpose rectification in consumer electronics
• Industrial control power sections

Design Considerations

When selecting the M7 rectifier diode, engineers should verify reverse voltage rating based on peak AC input conditions and confirm current handling capability under expected load. Thermal management through adequate PCB copper area is recommended to ensure stable operation within specified limits.

Datasheet

For detailed electrical characteristics and mechanical dimensions, please refer to:

http://www.suntan.com.hk/pdf/Rectifier-Diode/SMD.pdf
