Box-Type Stacked Film Capacitors in Ammo Pack – Compact Design for Pulse and DC Applications

Component Overview

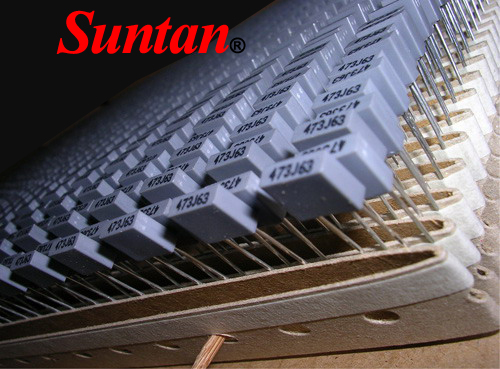

The box-type stacked film capacitors supplied in ammo pack configuration are designed for automated insertion and compact PCB layouts.
The rectangular housing with 5mm lead pitch supports symmetrical placement while maintaining electrical stability in pulse and DC circuits.

Electrical and Mechanical Characteristics

• Stacked film construction for reduced volume
• Low loss characteristics
• Stable electrical performance
• Self-healing dielectric structure for extended service life
• Operating temperature range: -55°C to 105°C
• Lead pitch: 5mm

Applications

• DC impulse circuits
• Pulse handling networks
• Signal coupling and timing circuits
• Compact PCB assemblies requiring automated insertion

Design Considerations

• Verify lead pitch compatibility with PCB footprint
• Consider stacked film structure when optimizing board space
• Evaluate thermal conditions within the -55°C to 105°C operating range
• Confirm pulse current and voltage stress against application requirements

Cross Reference

Equivalent series include Arcotronics/KEMET R82, EPCOS B32529, Vishay MKT370, and MKT365–367.
These references support design migration where similar electrical and mechanical specifications are required.

Conclusion

The box-type stacked film capacitors in ammo pack format provide a compact solution for automated assembly and pulse-capable DC circuits.
The combination of low loss, self-healing capability, and stable performance supports long-term reliability in space-constrained designs.
