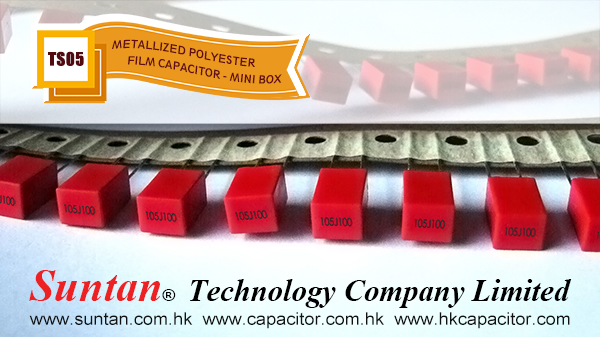

TS05 Mini Box Metallized Polyester Film Capacitors – High Reliability and Low Loss

Overview

The TS05 series mini box metallized polyester film capacitors are designed for high reliability applications.
The box-type packaging provides uniform external dimensions for consistent PCB integration, while maintaining low dissipation factor and stable capacitance.

Electrical and Mechanical Characteristics

• Reference standard: GB7332 (IEC 60384-2)
• Climatic category: 40/085/21
• Rated temperature: 85°C
• Dissipation factor: ?0.8% (20°C, 1?kHz)
• Rated voltages (DC): 50?V, 63?V, 100?V, 250?V, 400?V, 630?V
• Capacitance range: 0.0010??F – 2.2??F
• Capacitance tolerance: ±5% (J), ±10% (K)
• Voltage proof: Type A: 1.6×UR (5?s); Type B: 1.4×UR (5?s)
• Insulation resistance: C ? 0.33??F, IR ? 3,000?MΩ; C > 0.33??F, IR × C ? 1,000?MΩ·?F (20°C, 1?min)

Applications

• AC and DC filtering circuits
• Power supply decoupling
• Industrial control and automation
• General-purpose EMI suppression

Design Considerations

• Verify rated voltage and capacitance for circuit requirements
• Ensure insulation resistance meets design needs
• Consider PCB footprint and box-type dimension constraints
• Confirm temperature and climatic suitability for application environment

Conclusion

The TS05 mini box metallized polyester film capacitor series provides high reliability, low loss, and standardized box-type dimensions suitable for a wide range of industrial and consumer applications.

For datasheet access or technical inquiries, please refer to:

https://www.suntan.com.hk/pdf/Plastic-Film-Capacitors/TS05.pdf
