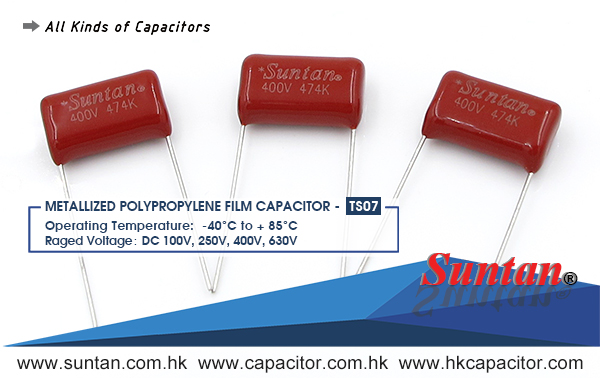

TS07 Metallized Polypropylene Film Capacitor for High-Frequency and Lighting Applications

Component Overview

The TS07 series is a metallized polypropylene film (MPP) capacitor designed for high-frequency circuit applications and widely used in the lighting industry.
Its metallized polypropylene dielectric structure supports stable electrical performance and self-healing characteristics under operating stress.

Electrical Characteristics

• Rated DC voltage: 100V, 250V, 400V, 630V
• Capacitance range: 0.01?F to 8.2?F
• Capacitance tolerance: ±5%, ±10%, ±20%
• Operating temperature: -40°C to +85°C
• Dissipation factor: ?0.001 at 1kHz (Typical 0.002 Max)

Insulation Resistance

• UR > 100V: C ? 0.33?F, IR ? 25000MΩ; C > 0.33?F, IR ? 7500S
• UR < 100V: C ? 0.33?F, IR ? 12500MΩ; C > 0.33?F, IR ? 3750S

Performance Features

• Self-healing performance for improved reliability
• Low dissipation factor
• Stable characteristics under high-frequency operation
• Temperature stability across operating range

Applications

• Lighting industry applications
• High-frequency circuits
• S-curve compensating circuits

Design Considerations

• Select rated voltage according to DC operating conditions
• Capacitance value affects frequency compensation behavior
• Consider insulation resistance requirements based on applied voltage
• Verify thermal conditions within specified operating temperature range

Datasheet

For detailed specifications, refer to the official datasheet:
TS07 Series Datasheet
