Metallized Polypropylene Film Capacitors for High Frequency and Compensation Circuits

Overview

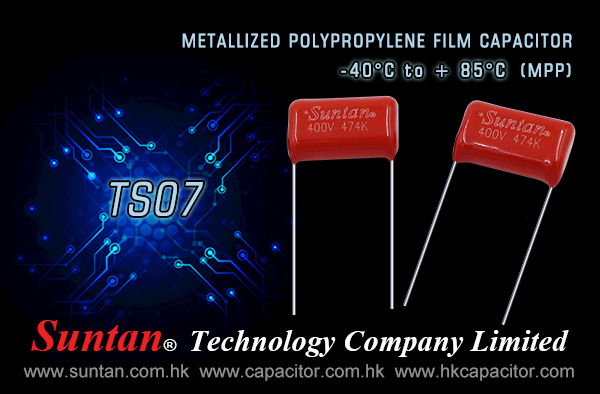

The TS07 metallized polypropylene film capacitor is designed for circuits requiring low dissipation factor, stable capacitance over frequency, and reliable self-healing performance.
Polypropylene dielectric characteristics support high frequency operation and temperature stability.

Electrical Characteristics

• Rated voltage: DC 100 V, 250 V, 400 V, 630 V
• Capacitance range: 0.01 ?F to 8.2 ?F
• Capacitance tolerance: ±5%, ±10%, ±20%
• Dissipation factor: ?0.001 at 1 kHz (typical), 0.002 max
• Operating temperature: ?40°C to +85°C

Insulation Resistance

• UR > 100 V, C ? 0.33 ?F: ?25,000 MΩ
• UR > 100 V, C > 0.33 ?F: ?7,500 S
• UR < 100 V, C ? 0.33 ?F: ?12,500 MΩ
• UR < 100 V, C > 0.33 ?F: ?3,750 S

Material and Performance Features

• Metallized polypropylene dielectric
• Self-healing capability for localized dielectric breakdown
• Low dielectric loss at high frequency
• Stable capacitance across temperature variation

Applications

• High frequency compensation circuits
• S-curve compensating networks
• Signal coupling and filtering
• General frequency-dependent circuits

Design Considerations

• Select capacitance value according to compensation network requirements
• Verify voltage rating with adequate derating margin
• Consider frequency stability for high frequency signal paths
• Account for package size in through-hole PCB layout

Datasheet Reference

For detailed electrical specifications and dimensional data, refer to the TS07 series datasheet.
Download datasheet
