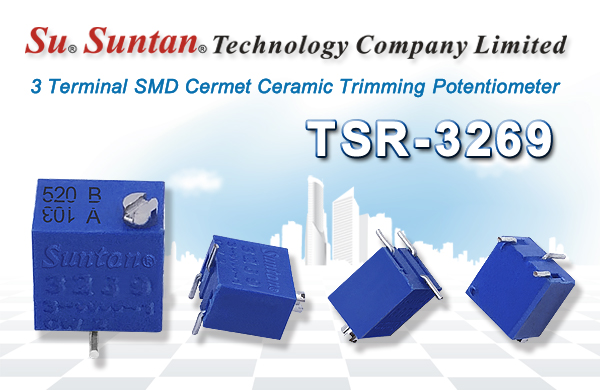

TSR-3269 SMD Trimming Potentiometer – 3269W / 3269X / 3269P

Product Overview

The TSR-3269 series SMD trimming potentiometer is available in three configurations: 3269W, 3269X, and 3269P. This multi-turn trimmer is designed for precision resistance adjustment in calibration and tuning circuits.

Electrical Specifications

• Standard Resistance Range: 10Ω – 5MΩ
• Temperature Range: -55°C to +125°C
• Withstand Voltage: 600VAC
• Effective Travel: 12 turns
• Mounting Type: Surface Mount

Mechanical Configurations

• 3269W
• 3269X
• 3269P

Different adjustment orientations allow flexibility in PCB layout and mechanical design requirements.

Applications

• Signal calibration circuits
• Voltage and current adjustment modules
• Industrial control systems
• Telecommunication equipment

Design Considerations

• Select resistance value according to circuit tuning requirements.
• Ensure temperature range compatibility with operating environment.
• Confirm mechanical orientation based on PCB layout constraints.
• Use controlled adjustment torque to avoid mechanical stress.

Technical Documentation

For detailed electrical characteristics and dimensional drawings, refer to the official datasheet:

TSR-3269 Datasheet
