Expanded Rectifier and Diode Portfolio – Through-Hole and SMD Solutions

Product Overview

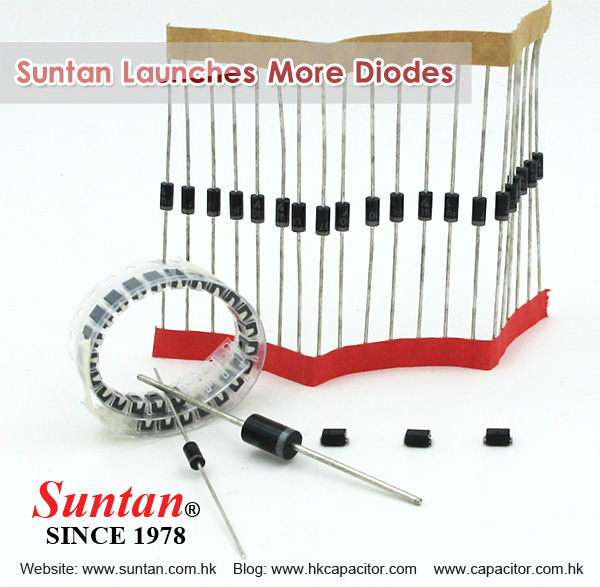

Suntan has expanded its rectifier and diode product range to support a wide variety of circuit protection and power rectification applications.
The portfolio includes standard recovery, fast recovery, ultra-fast, Schottky, and TVS diode categories in both through-hole and surface mount configurations.

Product Series Coverage

General Rectifier Diodes

• 1N4007 / 1N4007S
• M1 – M7
• S1M
• RL201 – RL207
• 1N5391 – 1N5399
• 1N5400 – 1N5408
• 10A05 – 10A10

Fast and Ultra-Fast Recovery Diodes

• FR101 – FR107
• HER101 – HER108
• UF4001 – UF4007
• US1A – US1M
• ES1A – ES1J
• ES2A – ES2J
• ES3A – ES3J

Schottky Barrier Diodes

• SS12 – SS14
• SS22 – SS26 / SS22A – SS26A
• SS32 – SS36 / SS32A – SS36A / SS32B – SS36B
• SS52 – SS56 / SS52B – SS56B

Surface Mount Rectifiers

• MB1S – MB10S
• MB1F – MB10F
• GS1A – GS1J
• GS2A – GS2J / GS2K – GS2M
• GS3A – GS3J / GS3K – GS3M
• RS1A – RS1M

TVS Diodes

• SMAJ5.0CA – 220CA
• SMAJ250CA – 440CA
• SMBJ5.0CA – 220CA
• SMBJ250CA – 440CA

Applications

• AC to DC rectification circuits
• Switching power supplies
• Reverse polarity protection
• High-frequency rectification
• Transient voltage suppression
• Consumer and industrial electronics

Design Considerations

• Select recovery type according to switching frequency.
• Verify forward current and reverse voltage ratings.
• Confirm package compatibility with PCB layout.
• Evaluate thermal management under load conditions.
• Review transient suppression requirements when selecting TVS devices.

Product Information

For detailed specifications and datasheets, please visit:

http://www.suntan.com.hk/Rectifier-Diode/
