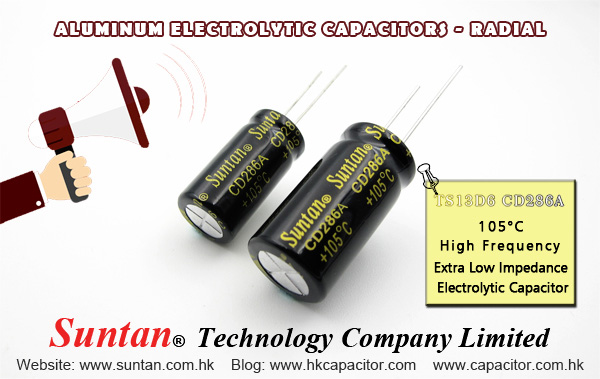

TS13D6 CD286A 105°C High Frequency Extra Low Impedance Aluminum Electrolytic Capacitor

Product Overview

TS13D6 CD286A is a 105°C rated aluminum electrolytic capacitor designed for high-frequency applications requiring low impedance characteristics. The series is intended for circuits where ripple handling capability and impedance performance are critical under elevated operating temperatures.

Key Characteristics

• Aluminum electrolytic capacitor construction
• Rated temperature: 105°C
• Designed for high-frequency applications
• Extra low impedance performance

Applications

• Switching power supplies
• DC output filtering circuits
• High-frequency power conversion stages
• Industrial electronic equipment

Design Considerations

When selecting TS13D6 CD286A for high-frequency designs, engineers should verify rated voltage, capacitance value, ripple current capability, and impedance characteristics according to system operating conditions. Thermal performance at 105°C should be evaluated in relation to ambient temperature and PCB layout to ensure long-term reliability.

Datasheet

For detailed electrical specifications and dimensional information, please refer to:

http://www.suntan.com.hk/pdf/Aluminum-Electrolytic-Capacitors/TS13D6-CD286A.pdf
