M7F Rectifier Diode – SMAF Package for Surface Mount Applications

Product Overview

M7F is a rectifier diode provided in SMAF surface mount package format. The device is supplied in tape and reel packaging, supporting automated SMT assembly processes.

Package and Packaging Information

• Package Type: SMAF
• Packaging: Tape & Reel
• Standard Pack Quantity (SPQ): 5,000 pcs
• RoHS compliant

Applications

• General rectification circuits
• Power supply output stages
• SMT-based electronic assemblies
• DC conversion circuits

Design Considerations

When selecting an SMAF rectifier diode, designers should verify voltage rating, forward current capability, and thermal dissipation conditions based on the PCB layout and operating environment. Surface mount format enables compact board design and automated assembly, but thermal management and copper area should be evaluated according to system power requirements.

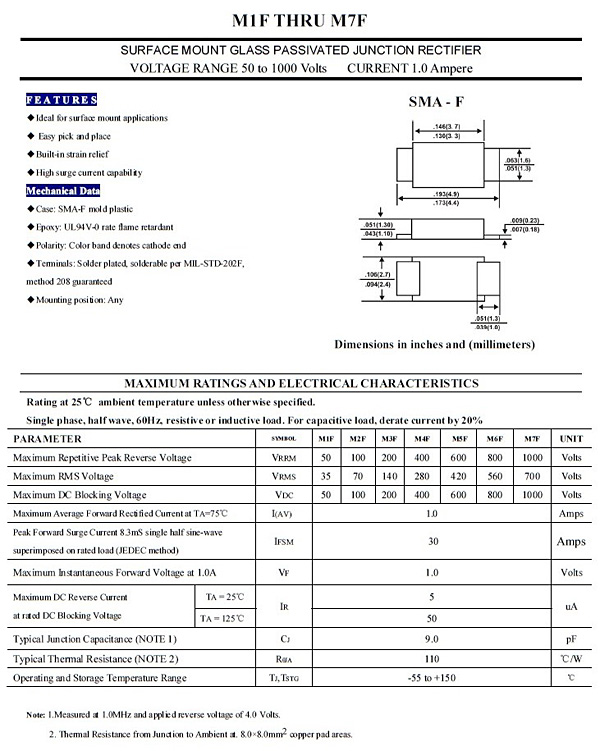

Datasheet

For detailed electrical characteristics and dimensional drawings, please refer to the official datasheet.
