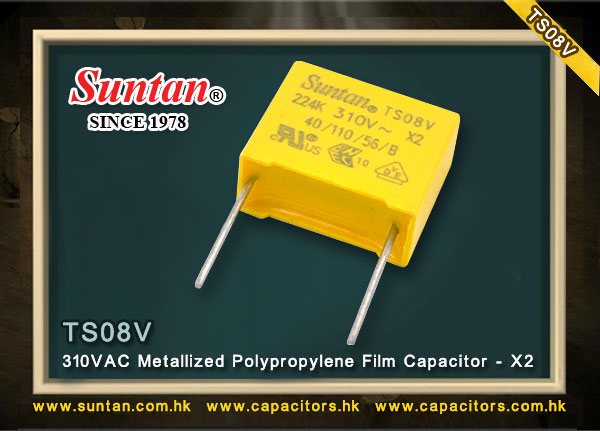

TS08V 310VAC Metallized Polypropylene Film Capacitor – X2 Class Sample Availability
Product Overview
The TS08V series is a Class X2 metallized polypropylene film capacitor rated at 310VAC, designed for across-the-line EMI suppression applications. To support evaluation and design-in activities, selected capacitance values are currently available from sample stock.
Electrical Classification
- Series: TS08V
- Dielectric: Metallized Polypropylene Film
- Safety Class: X2
- Rated Voltage: 310VAC
- Application Type: Across-the-line interference suppression
Available Sample Specifications
| Item | Capacitance (?F) | Voltage | Length (mm) | Thickness (mm) | Height (mm) | Pitch (mm) |
|---|---|---|---|---|---|---|
| 1 | 0.01 | 310VAC | 13 | 5 | 11 | 10 |
| 2 | 0.047 | 310VAC | 13 | 5 | 11 | 10 |
| 3 | 0.1 | 310VAC | 13 | 6 | 12 | 10 |
| 4 | 0.1 | 310VAC | 18 | 6 | 12 | 15 |
| 5 | 0.22 | 310VAC | 18 | 6 | 12 | 15 |
| 6 | 0.47 | 310VAC | 18 | 10 | 16 | 15 |
| 7 | 1 | 310VAC | 31.5 | 11 | 19.5 | 27 |
Applications
- Switch mode power supplies
- Home appliances
- Industrial control systems
- EMI suppression circuits across AC mains
Design Considerations
- Confirm X2 safety classification for across-the-line connection.
- Verify lead pitch compatibility with PCB layout.
- Review dimensional constraints in enclosure design.
- Validate capacitance value based on EMI filtering requirements.
Contact
For sample requests or technical inquiries, please contact:
