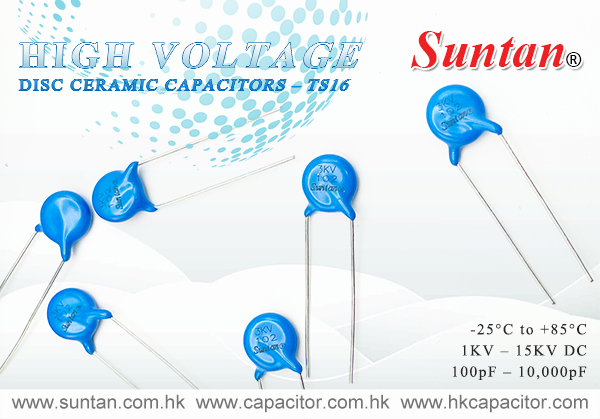

High Voltage Disc Ceramic Capacitor for Coupling and Bypass – TS16 1kV to 15kV Series
TL;DR: The TS16 high voltage disc ceramic capacitor provides reliable coupling and bypass performance with voltage ratings up to 15kV and high insulation resistance for power and telecom circuits.
What Is a High Voltage Disc Ceramic Capacitor?
A high voltage disc ceramic capacitor is designed for coupling, bypass, and pulse applications in high voltage circuits. It offers stable dielectric performance, high insulation resistance, and compact radial lead construction.
TS16 Series Overview
The TS16 high voltage ceramic capacitor supports working voltages from 1kV to 15kV DC and capacitance values from 100pF to 10,000pF. It is suitable for high reliability designs requiring stable electrical characteristics under high electric field stress.
Key Electrical Characteristics
- Rated voltage: 1kV to 15kV DC
- Capacitance range: 100pF to 10,000pF
- High insulation resistance up to ?10GΩ
- Stable dielectric options including NPO and Y5 series
- Reliable coupling and bypass performance
Typical Applications
- High voltage power supplies
- Pulse and snubber circuits
- Telecommunications equipment
- Industrial control systems
- Measurement and test instruments
Dielectric Options and Stability
| Dielectric Type | Stability | Typical Use |
|---|---|---|
| NPO | Very stable | Precision coupling and timing |
| YL / SL | High insulation resistance | High voltage circuits |
| Y5P / Y5U / Y5V | Higher capacitance density | General bypass applications |
Selection Considerations for High Voltage Design
When selecting a high voltage ceramic capacitor for coupling or bypass, engineers should evaluate voltage margin, dielectric type, insulation resistance, and pulse withstand capability.
Download TS16 Datasheet
Access full electrical specifications and test conditions:
TS16 High Voltage Ceramic Capacitor Datasheet
