Gold Capacitors and Electric Double Layer Capacitors for Energy Storage Applications

Component Overview

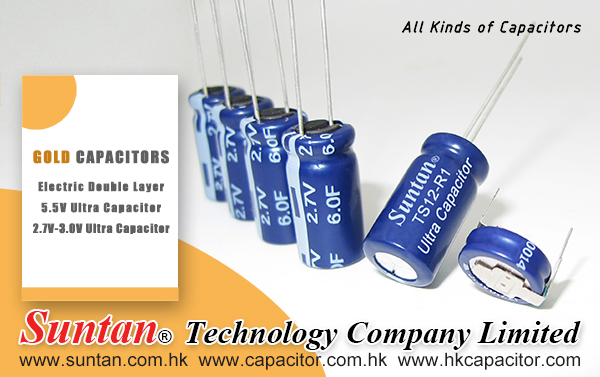

Suntan Gold Capacitors are electric double layer capacitors (EDLC), also known as ultra capacitors.
They are designed for applications requiring energy storage, low leakage characteristics, and stable performance within defined voltage ranges.

Available Series

• Electric Double Layer Capacitor (TS12)
• 5.5V Ultra Capacitor in standard coin type (TS12-01)
• 2.7V–3.0V High Power Ultra Capacitor available in radial, snap-in, and screw types (TS12-R1)

Electrical Characteristics

• Rated capacity: 0.15F to 8.0F
• Rated voltage: 2.7V to 5.5V
• Operating temperature range: -25°C to +70°C
• Low leakage characteristics

Performance Features

• Double layer capacitor structure for energy storage
• Multiple package configurations to support different mechanical requirements
• High power type options available

Applications

• Backup power circuits
• Energy storage modules
• Memory retention systems
• Industrial electronic equipment

Design Considerations

• Select rated voltage according to system operating conditions
• Verify capacitance value based on required backup time
• Consider package type according to mechanical constraints
• Ensure operating temperature remains within specified range

Datasheets

Electric Double Layer Capacitor:
TS12 Datasheet

5.5V Coin Type Ultra Capacitor:
TS12-01 Datasheet

2.7V–3.0V High Power Ultra Capacitor:
TS12-R1 Datasheet
