High Voltage Ceramic Capacitor – TS16 Series Technical Overview

Product Introduction

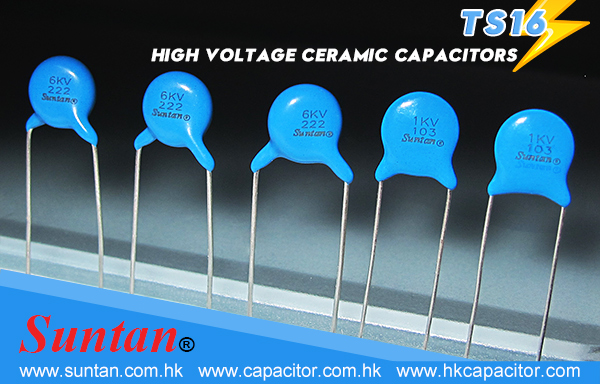

Suntan provides a wide range of ceramic capacitors, including the high voltage ceramic capacitor TS16 series.
This series is designed for applications requiring elevated voltage endurance and stable dielectric performance.

Voltage Capability

The TS16 series supports rated voltage from 1KV up to 15KV.
Standard specification coverage in the datasheet includes 1KV to 6KV voltage ratings.

Application Considerations

High voltage ceramic capacitors are commonly used in:

• High voltage power supplies
• Industrial control systems
• Lighting ballasts
• Pulse and discharge circuits
• Voltage multiplier circuits

Engineering Notes

When selecting high voltage ceramic capacitors, designers should evaluate:

• Rated voltage margin versus operating voltage
• Dielectric characteristics under temperature variation
• Insulation resistance performance
• Creepage and clearance requirements in PCB layout

Reference Documentation

TS16 Datasheet:

https://www.suntan.com.hk/pdf/Ceramic-Capacitors/TS16.pdf

Full Ceramic Capacitor Portfolio:

https://www.suntan.com.hk/Ceramic-Capacitors/
