TSC3S Ceramic Trimmer Capacitors – Adjustable Capacitance for RF and Tuning Applications

Product Overview

TSC3S series ceramic trimmer capacitors are designed for circuit tuning and fine capacitance adjustment in RF and signal applications. The series supports stable electrical performance where precise capacitance trimming is required during calibration or alignment.

Available Part Numbers

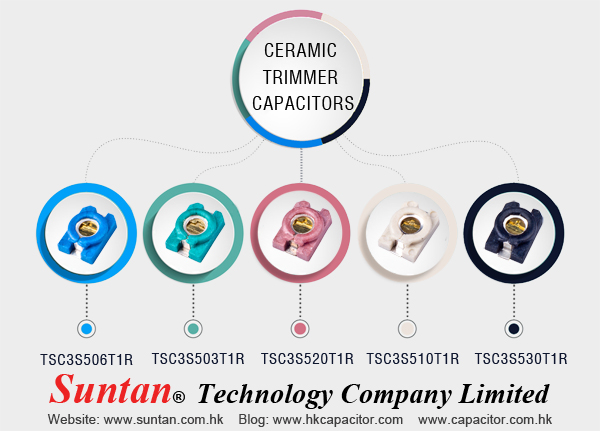

• TSC3S503T1R
• TSC3S506T1R
• TSC3S510T1R
• TSC3S520T1R
• TSC3S530T1R

Technical Characteristics

• Ceramic dielectric construction
• Adjustable capacitance structure
• Designed for circuit tuning and compensation
• Suitable for manual or automated calibration processes

Applications

• RF tuning circuits
• Oscillator frequency adjustment
• Impedance matching networks
• Signal calibration circuits

Design Considerations

When selecting a ceramic trimmer capacitor, engineers should confirm the required capacitance adjustment range and ensure mechanical accessibility for tuning after PCB assembly. Stability under operating temperature and vibration conditions should be evaluated according to the end-application environment.

Datasheet

For detailed electrical specifications and mechanical dimensions, please refer to:

http://www.suntan.com.hk/pdf/Ceramic-Trimmer-Capacitors/TSC3S.pdf
