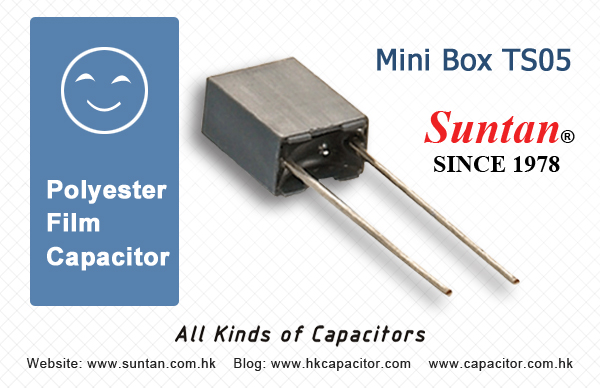

TS05 Metallized Polyester Film Capacitor – Mini Box Series

Product Overview

TS05 series is a metallized polyester film capacitor in mini box construction. The design adopts non-inductive structure with plastic case and epoxy resin sealing, supporting stable electrical performance in general electronic circuits.

Reference Standard

• GB7332 (IEC 60384-2)

Electrical Specifications

• Operating Temperature Range: -55°C to +105°C
• Rated Voltage: 50V / 63V, 100V, 250V, 400V, 500V, 630V
• Capacitance Range: 0.0010?F to 1.5?F
• Construction: Non-inductive, plastic case with epoxy resin

Typical Available Values (100V ±5%, P: 5mm, Ammo Package)

• 1000pF
• 1500pF
• 2200pF
• 3300pF
• 4700pF
• 6800pF
• 0.01?F
• 0.015?F
• 0.022?F
• 0.033?F
• 0.047?F
• 0.068?F
• 0.1?F
• 0.12?F
• 0.15?F
• 0.22?F
• 0.27?F
• 0.33?F
• 0.47?F
• 0.56?F
• 0.68?F
• 0.82?F
• 1?F

Applications

• General signal coupling circuits
• Bypass and decoupling circuits
• Industrial control electronics
• Consumer electronic equipment

Design Considerations

When selecting TS05 mini box film capacitors, engineers should verify rated voltage margin relative to circuit operating voltage and confirm capacitance tolerance requirements. Lead spacing (P: 5mm) must match PCB layout design. Thermal performance within -55°C to +105°C should be evaluated according to the intended operating environment.

Datasheet

For detailed electrical characteristics and dimensional drawings, please refer to:

http://www.suntan.com.hk/pdf/Plastic-Film-Capacitors/TS05.pdf
