SMD Aluminum Electrolytic Capacitors for Low Voltage Digital Power Circuits

Overview

Surface mount aluminum electrolytic capacitors are used for bulk capacitance and ripple filtering in low voltage digital power rails.
The TS13C0, TS13C1, and TS13C7 series provide different temperature and load life options to match application reliability requirements.

Electrical Characteristics

• Rated voltage range: 2 VDC to 16 VDC
• Capacitance range: 10 ?F to 270 ?F
• Operating temperature: ?20°C to +105°C
• Low ESR structure for ripple current handling
• Compact SMD package for high density PCB layouts

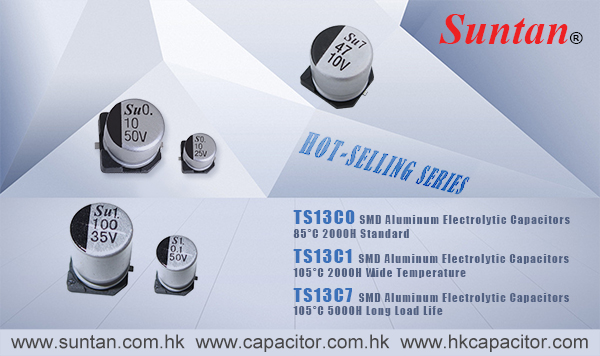

Series Classification

• TS13C0 – 85°C, 2000 hours standard type
• TS13C1 – 105°C, 2000 hours wide temperature type
• TS13C7 – 105°C, 5000 hours long load life type

Performance in Digital Equipment Power Supplies

Digital signal processing circuits require stable DC rails with controlled ripple and transient response.
Low ESR SMD electrolytic capacitors support output filtering in compact power supply sections for digital equipment.

Applications

• Flat panel display power modules
• DVD recorder power circuits
• Automotive navigation system power filtering
• Digital signal processing power supplies

Design Considerations

• Select endurance rating based on thermal profile
• Verify ripple current capability for switching frequency
• Match capacitance value to transient load requirements
• Ensure PCB thermal relief for extended lifetime

Datasheet Reference

• TS13C0 – 85°C standard series
• TS13C1 – 105°C wide temperature series
• TS13C7 – 105°C long load life series
